Determining the type and source of ionizing radiation is crucial for effective intervention. RADIAS serves as an ionizing radiation measurement system designed to facilitate real-time measurement and monitoring of environmental ionizing radiation (including X-ray (Continuous), gamma) dose rate, as well as the identification of radioisotopes.

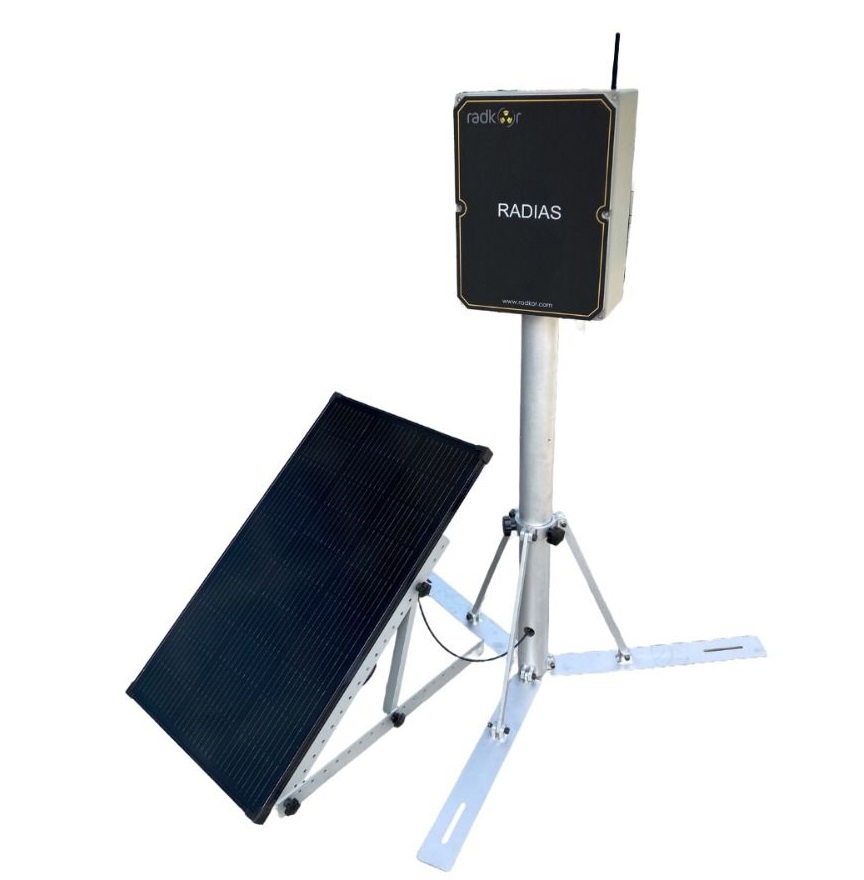

Equipped with a solar panel integrated into its structure, RADIAS ensures continuous data transfer to the center even in locations without electricity. Its compact design allows for seamless integration into any desired area, while its GPS functionality provides instant location information to the center.
RADIAS, with its 1024 to 4096 channels MCA structure, can accurately identify various radioisotopes in a single measurement. Furthermore, the radiation performance tests of the system are conducted in the RADKOR laboratory, which is accredited according to ISO/IEC 17025. The system complies with IEC 60846-1 and IEC 62327 standards.
|
RADIAS |
|
| Dose Rate Measurement Range (H*(10)): | 10 nSv/h – 1.0 Sv/h |
| Radiation Type: | Gamma and X-Ray (Continuous) Radiation Measurement |
| Radioisotope Identification: | Main Radioisotopes in the Radioisotope Data Library (according to ISO/IEC 62327)
|
| Technical Specifications of the System | |
| Detector: | LaBr3, CsI (Tl) |
| Radiation Type: | X-ray (Continuous) and gamma |
| Measured Parameters: | H*(10) measurement |
| Energy Range (X-ray Gamma): | 30 keV- 3.0 MeV according to ISO/IEC 60846-1 |
| Dose Rate Range: | 10 nSv/h- 1.0 mSv/h (Spectroscopic) |
| Dose Rate Range: | 1.0 mSv/h -1.0 Sv/h (Scintillator and Si detector) |
| MCA: | Capability up to 4096 channels |
| Radioisotope Library: | According to ISO/IEC 62327 |
| Alarm Types: | Visual, audible |
| Operating Temperature: | In the range from -30℃ to 60 ℃ |
| Battery: | 72 hours (without solar panel; optionally can be connected to an external power source). |
| Dimensions: | 320 mm x 165 mm x 1430 mm |
| Weight: | 25 kg |
| Communication Protocol: | GSM, Ethernet, Satellite (optional) |
| IP Standard: | IP 65 |
